Main Features
800 mm
Width
1920 mm
Height
800 mm
Depth
Refrigerants
R290
No
Optional
2760 W
Cooling capacity
2680 W
Rated power
5 (40ºC - 40%)
Class
Additional Features
60
Insulation (mm)
15
GN 1/1-40 Capacity
Yes
Probe Cycle
Yes
Time Cycle
15
Capacity (60x40)
120
Duration +90+3 (min)
270
Duration +90-18 (min)
63
Production 65+3 (Kg)
37
Production 65-18 (Kg)
Description
AISI-304 stainless steel exterior, except the rear side and base
Interior in AISI-304 stainless steel
Doors with automatic closing system and magnetic gasket (stays open when opening over 90 °)
Inductive door opening microswitch
AISI-304 stainless steel top

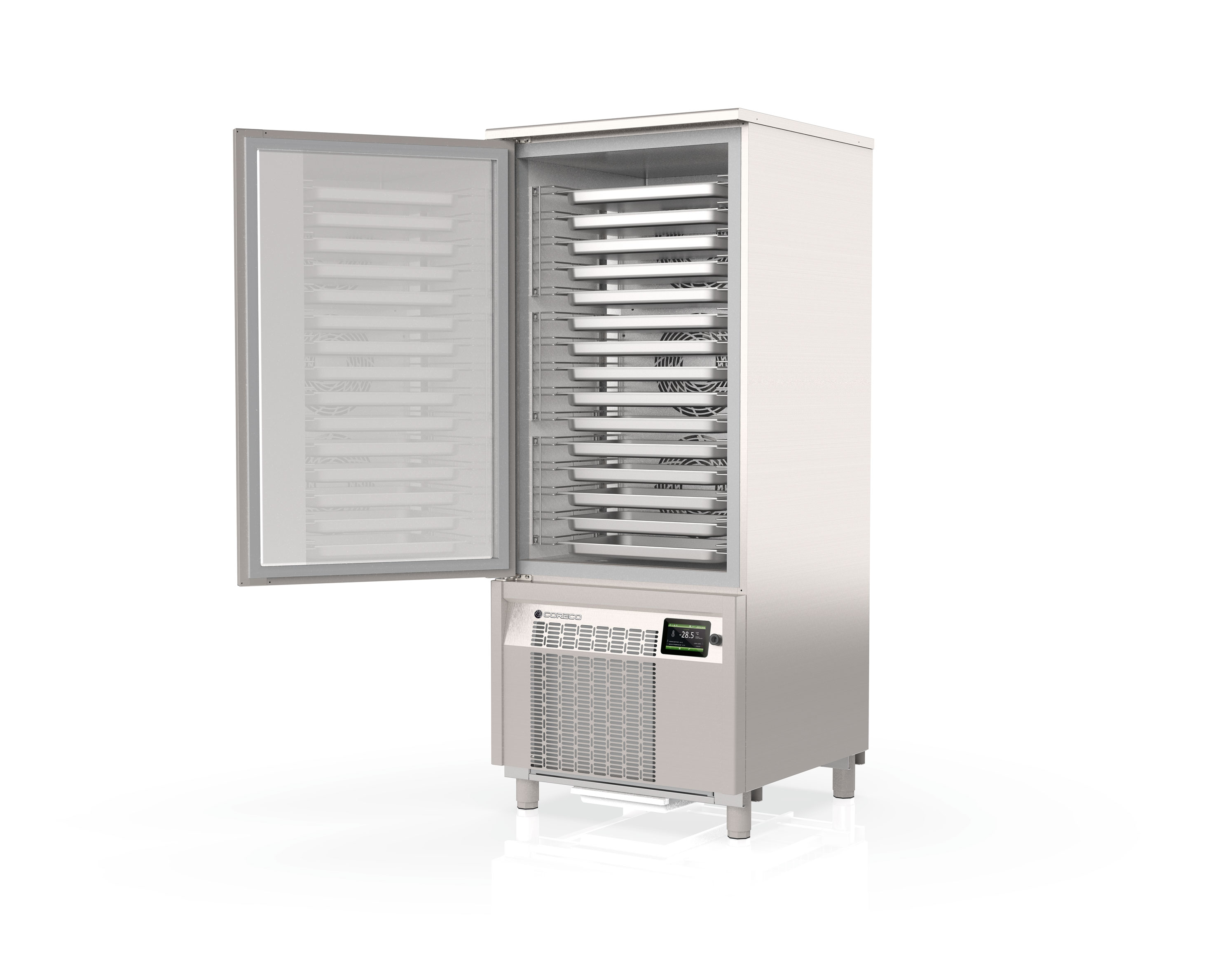

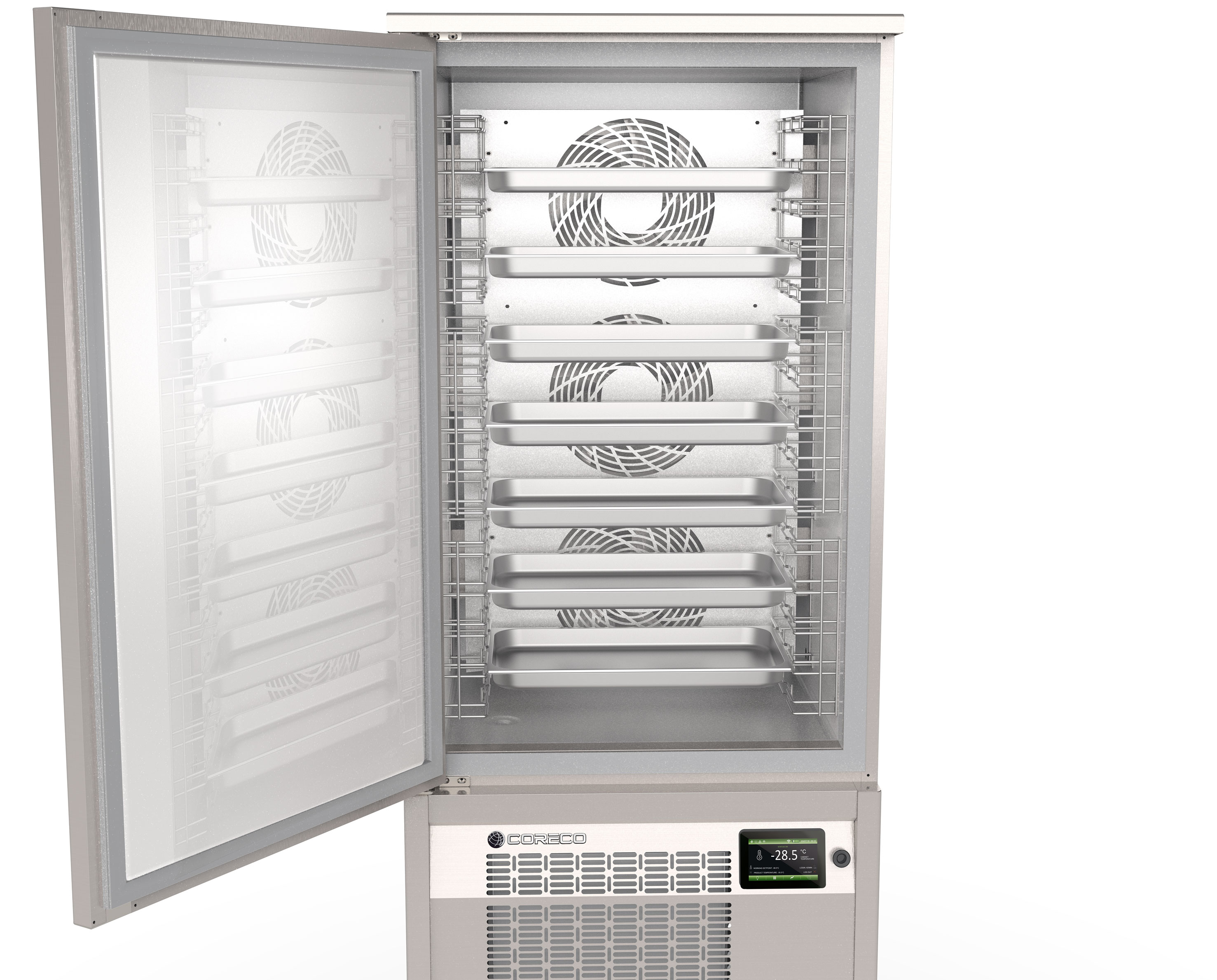

GN1/1 and 60x40 combinated inner capacity (trays or shelves not included)
Ventilated condensing unit
Forzed air evaporator system with anti-corrosion epoxy coating
Expansion valve
Injected polyurethane insulation, density 40 Kg/m³
Graphical control panel with 5 inches TFT touch screen, IP65
Advanced management of the functions for the latest generation blast chillers.
RS-485 and USB connectivity
Included detachable and heated core probe
Management of cycles by time or temperature
Probe insertion test (temperature management)
Recording of HACCP data, viewable on screen or downloadable via USB port in CSV format
Chilling and freezing cycles "hard / soft"
4 blast chilling standard cycle combinations
Continuous cycle programming by temperature or time
Multiple customizable programs
Defrost by resistance at the beginning of the cycle, optimized by temperature
Efficient management of energy consumption
Optional: the Wi-Fi interface allows you to view alarms, machine statuses and the HACCP history, as well as access configuration settings from a PC, smartphone or tablet.
