Main Features
715 mm
Width
520 mm
Height
700 mm
Depth
Refrigerants
R290
No
Optional
694 W
Cooling capacity
1100 W
Rated power
5 (40ºC - 40%)
Class
Additional Features
45
Insulation (mm)
3
GN 1/1-40 Capacity
3
Guide Pairs
Yes
Probe Cycle
Yes
Time Cycle
3
Capacity (60x40)
120
Duration +90+3 (min)
270
Duration +90-18 (min)
10
Production 65+3 (Kg)
6,8
Production 65-18 (Kg)
Description
AISI-304 stainless steel exterior, except the rear side and base
Interior in AISI-304 stainless steelDoors with automatic closing system and magnetic gasket (stays open when opening over 90 °)
Inductive door opening microswitch
AISI-304 stainless steel top

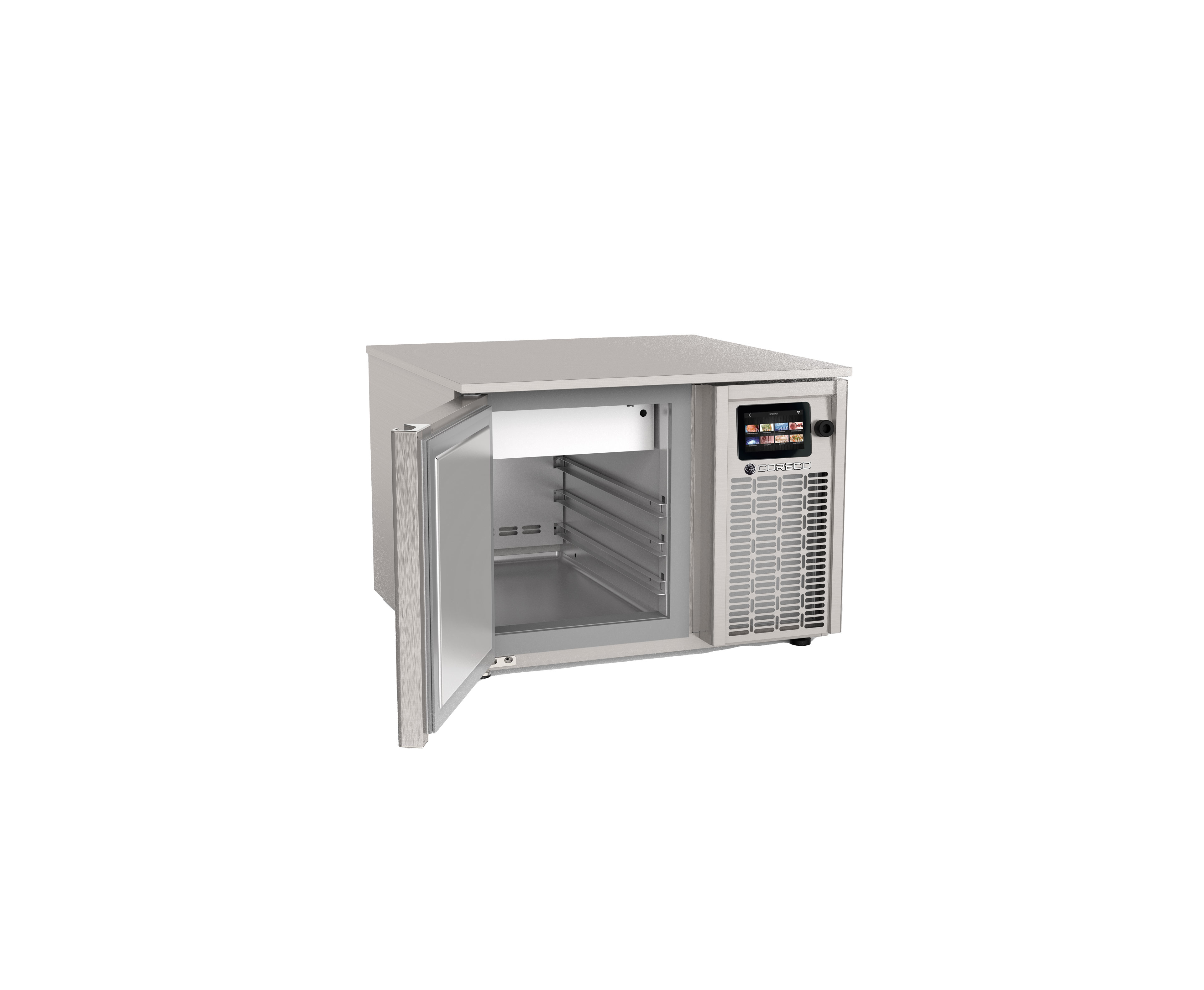

GN1/1 and inner capacity (trays or shelves, not included)
70 mm distance between levels
Ventilated condensing unit
Forzed air evaporator system with anti-corrosion epoxy coating
Expansion valve
Injected polyurethane insulation, density 40 Kg/m³
Graphical control panel with 5 inches TFT touch screen, IP65
Advanced management of the functions for the latest generation blast chillers.
RS-485 and USB connectivity
Included detachable and heated core probe
Management of cycles by time or temperature
Probe insertion test (temperature management)
Recording of HACCP data, viewable on screen or downloadable via USB port in CSV format
Chilling and freezing cycles "hard / soft"
4 blast chillig standard cycle combinations
Continuous cycle programming by temperature or time
Multiple customizable programs
Defrost by resistance at the beginning of the cycle, optimized by temperature
Efficient management of energy consumption
WIFI interface to visualize alarms, machine statuses, HACCP his-tory and let access configuration operations from PC, smartphone, or tablet
